Fully Automatic MV LV Assembly Production Line – Industry 4.0 Ready

This fully automatic MV LV assembly line is designed for high-speed, precision assembly of medium and low voltage switchgear and panels. Robotic stations, modular conveyors, and real-time SCADA integration support smart factory requirements. Integrated automated electrical testing station performs hi-pot, continuity, and insulation resistance tests in-line.

Keywords:

Category:

Production line

Hotline:

+86 15734160869

Message

Detailed information

Core Components and Process Flow of Medium-Voltage Switchgear Production Line

I. Critical Processing Equipment

00001.

?Sheet Metal Processing Section?

00002.

?Laser Cutting Unit?: High-power fiber laser equipment cuts stainless steel/aluminum alloy plates with ?±0.1mm accuracy?23

?CNC Bending Unit?: Servo-electro-hydraulic hybrid press brake achieves automatic cabinet frame forming, with ?±0.05° repeat positioning precision?2

?Automatic Welding Unit?: Inert gas chamber (Ar/He) meets explosion-proof welding requirements1

00003.

II. System Integration & Testing

?Module?	?Equipment?	?Specifications?
?Primary Circuit Assembly?	6-axis collaborative robot	?±0.2mm accuracy? for 35kV bushing installation1
?Secondary Wiring Integration?	Auto-crimping + heat-shrink terminal machine	?Terminal error rate <0.01%?7
?Full Machine Testing?	MES-integrated withstand voltage platform	?AC 42kV/1min?, partial discharge ?<5pC?4
?Logistics Conveying?	SLAM-guided RGV + magnetic rail roller line	?1.2-ton capacity?, ?0.5m/s speed?23

Core Advantages of Modular Design in Medium-Voltage Switchgear Production Lines

I. Cost Optimization

· ?Reduced Manufacturing & Procurement Costs?:
Modular design enables standardized mass production, ?lowering unit manufacturing costs by >30%?, reducing spare parts inventory by ?50%?, and cutting procurement expenses by ?25%?.

· ?Space Compression & Cost Savings?:
Slim-line cabinet design (e.g., 550mm width) ?saves 40% floor space? versus traditional solutions, reducing civil engineering investments. Vertical stacking capability eliminates expansion costs27.

· ?Breakthrough in Installation Costs?:
Increased factory pre-assembly ?reduces on-site wiring by 70%?, cuts installation cycles by ?50%?, and saves over ??600,000 in labor costs?27.

II. Production Efficiency Enhancement

· ?Rapid Deployment & Flexibility?:
Modular production lines support parallel operations, ?slashing product assembly time from 2 hours to 30 minutes?. Line cycle time reduction boosts output by ?30%-50%?58.

· ?Smart Manufacturing Integration?:
Combines collaborative robots (e.g., 6-axis arms) with plug-and-play interfaces, enabling automated assembly and debugging with ?<0.01% error rate?78.

III. Operational Efficiency Improvement

· ?Swift Fault Resolution?:
Modular independence achieves ?90% fault localization accuracy?, shortening repairs from ?4 hours to 30 minutes?. Standardized interfaces ensure ?100% cross-batch compatibility?69.

· ?Predictive Maintenance?:
Embedded sensors monitor real-time parameters (temperature/vibration). Combined with digital twin technology, predicts residual lifespan with ?<5% error?, extending maintenance cycles to ?18 months? and cutting costs by ?40%?36.

IV. Safety & Reliability

· ?Physical Isolation Protection?:
Independent compartments (e.g., circuit breaker/busbar chambers) separated by ?3mm metal barriers? withstand ?20kA arc energy?, containing fault propagation. ?Leakage rate ≤10?? Pa·m?/s?46.

· ?Seismic & Environmental Resilience?:
Flexible connectors (e.g., 3D-adjustable locking devices) tolerate ?±15° deviation?. Cabinet deformation is ?only 1.2mm? in simulated ?magnitude-9 earthquakes?. Operates at ?≤75dB(A) noise? in ?-5~40°C environments?69.

V. Scalability & Sustainability

· ?Flexible Configuration?:

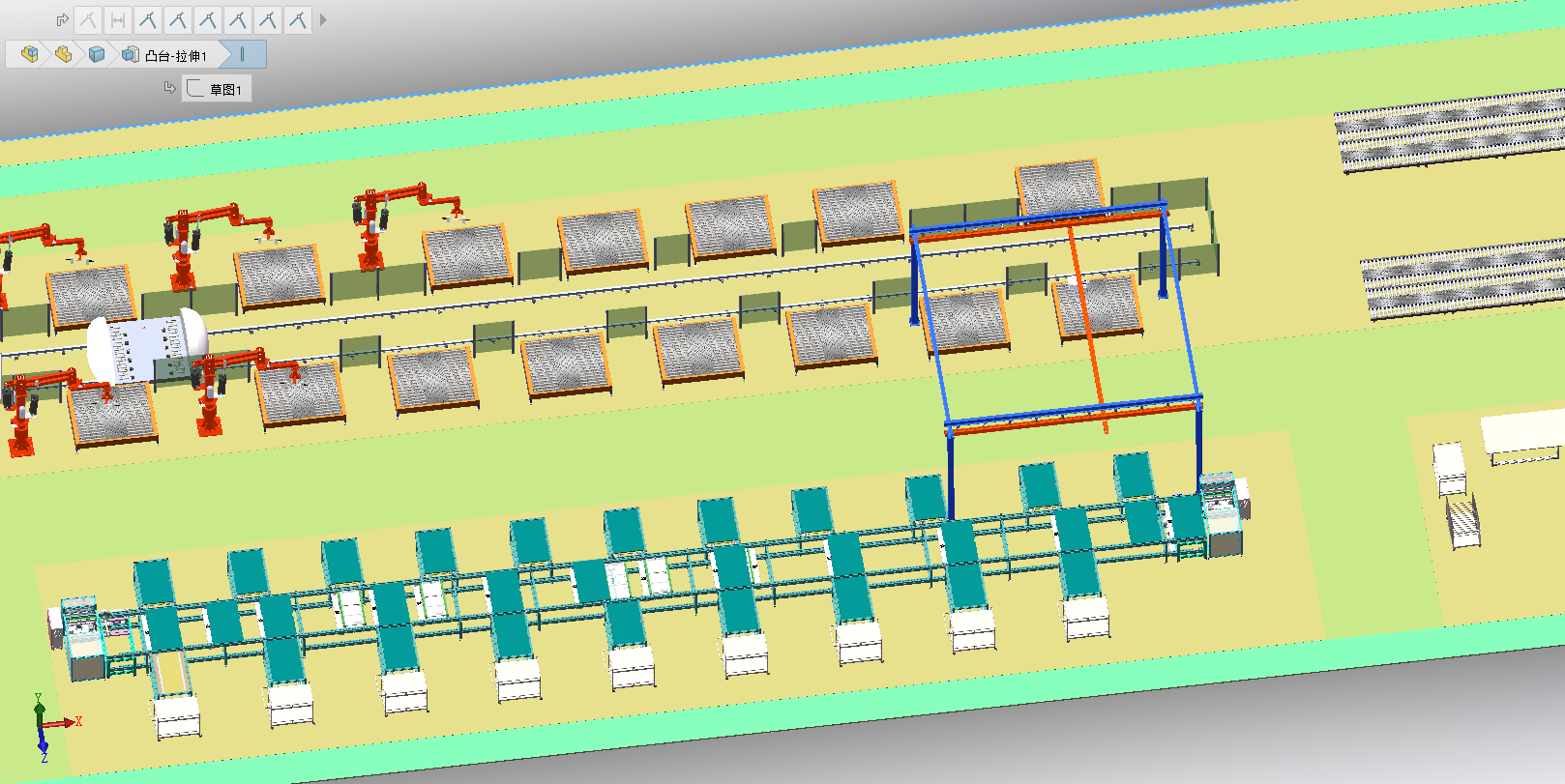

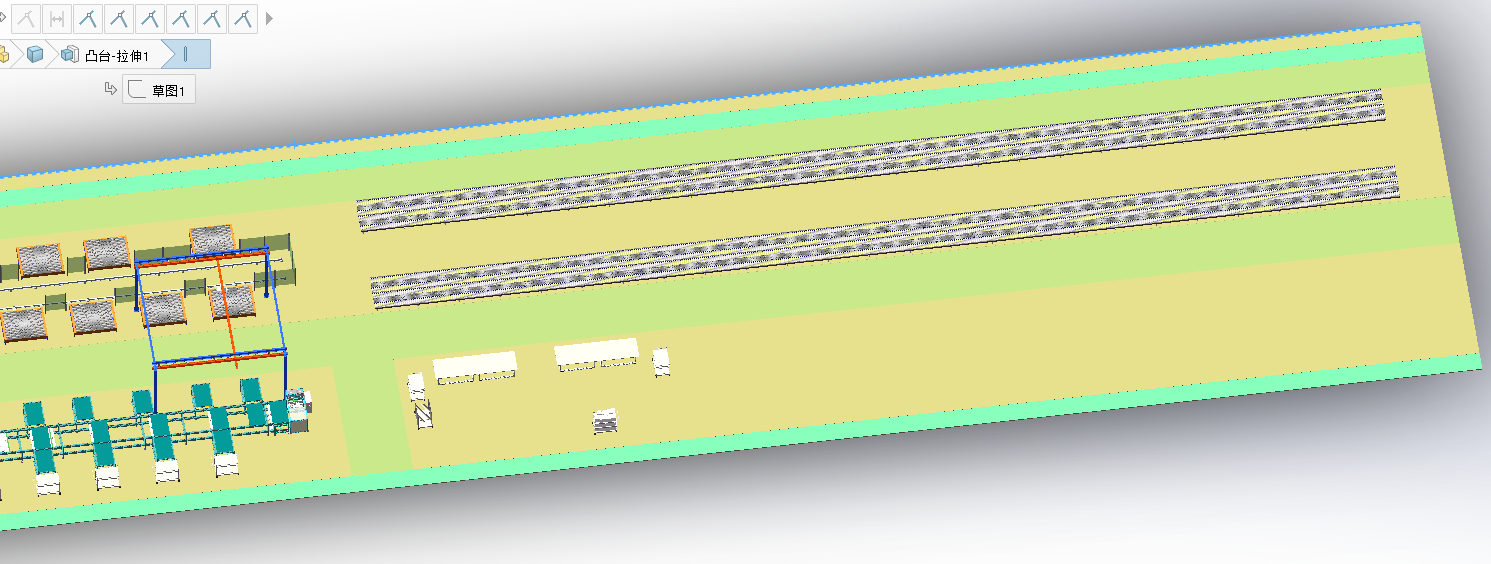

Supports ?1–4-unit cabinet combinations? via reserved rails and standardized interfaces for plug-and-play modules. Compact production line layout (?94m×15m?)35.

· ?Eco-Compliance?:
SF?-free insulation design (using ?vacuum interrupters or C4F7N gas mixtures?) complies with EU ?F-gas regulations?, reducing greenhouse emissions
